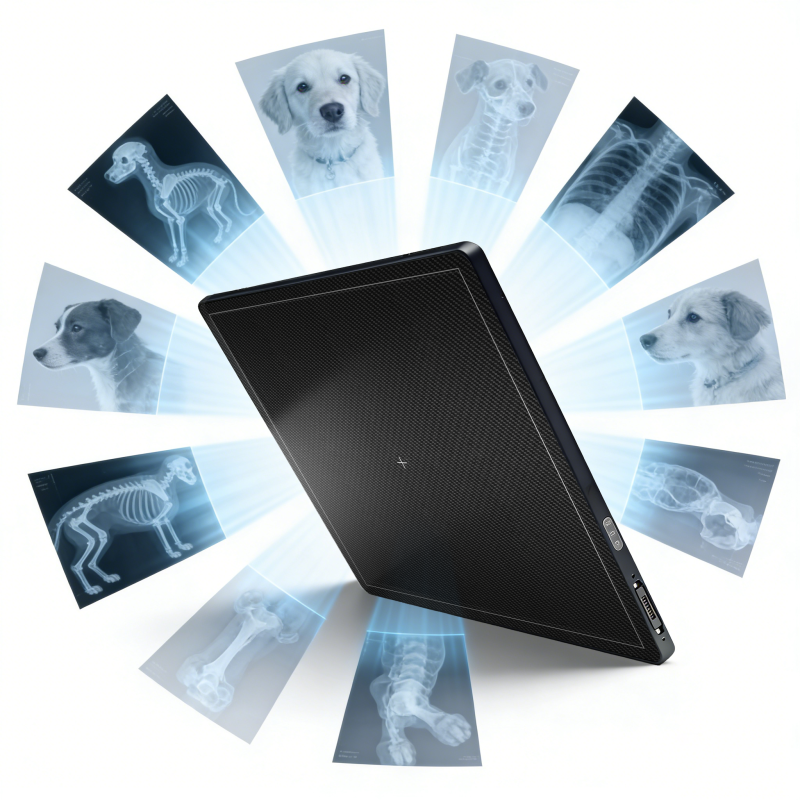

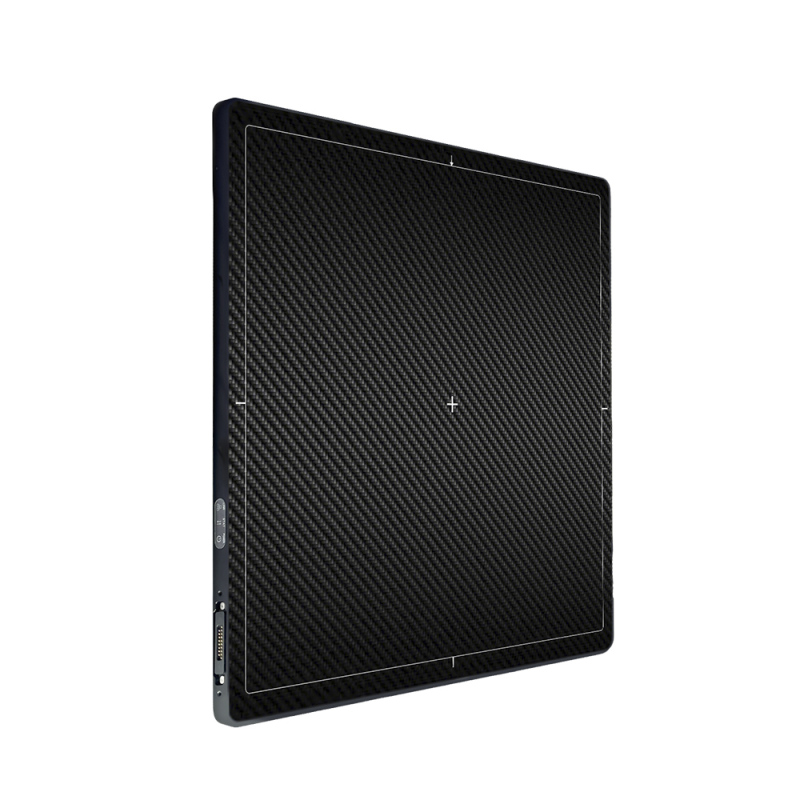

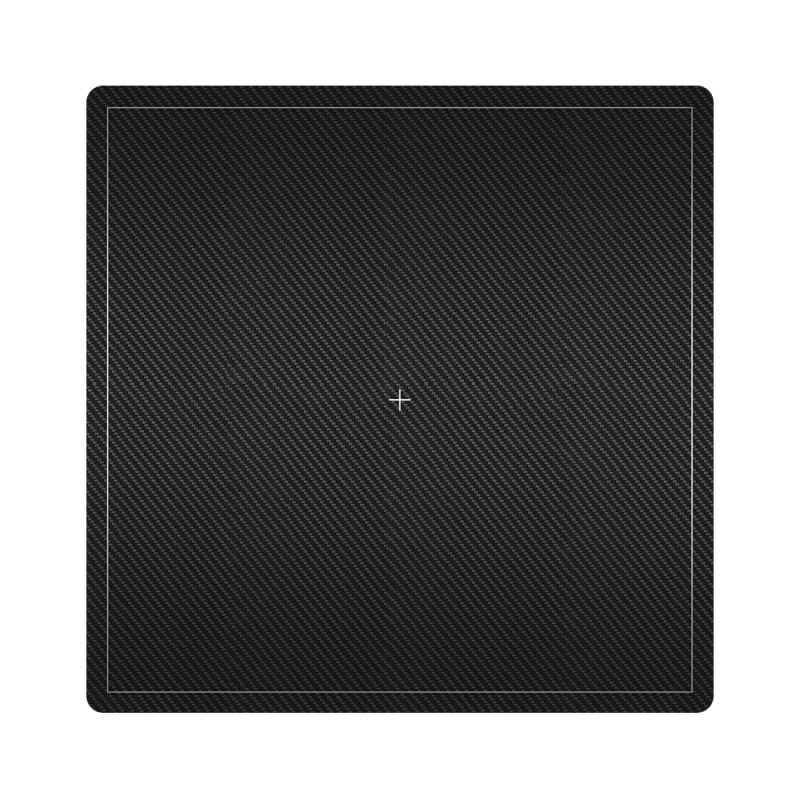

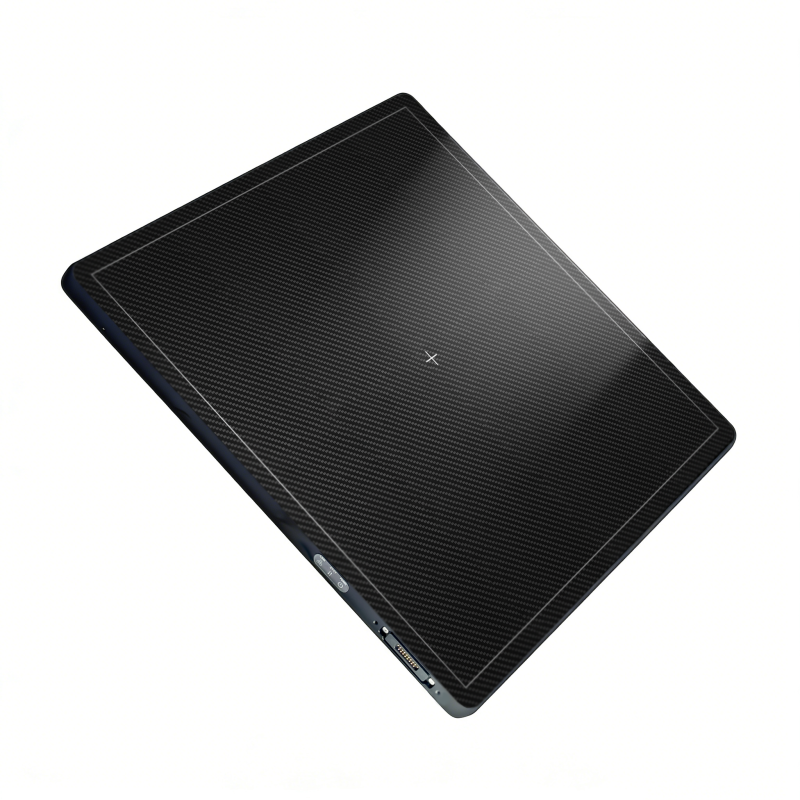

Affordable 17x17" Veterinary X-ray Detector, High Cost-Effective Pet X-ray Flat Panel Wired X-ray Detector

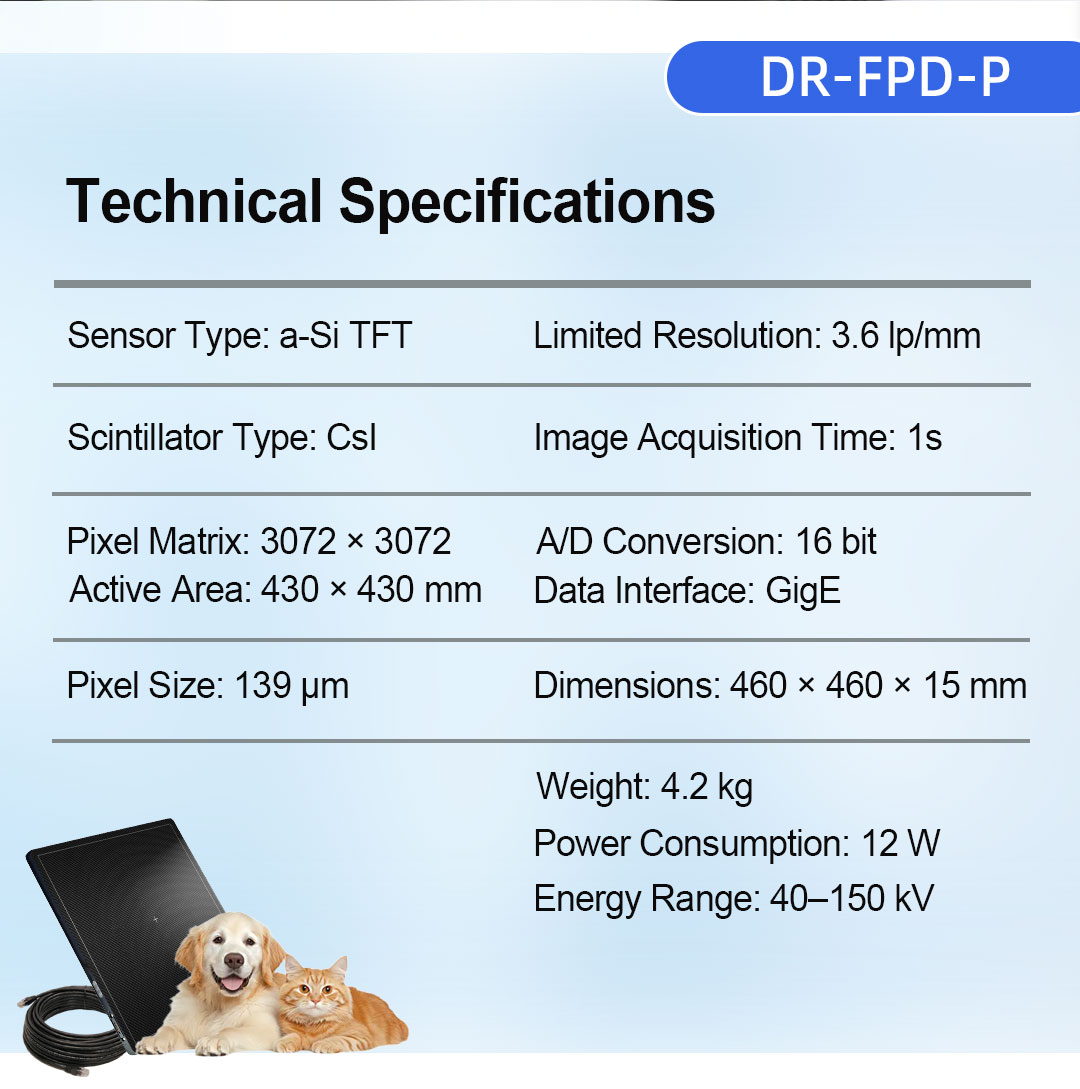

| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Detector | DY4343 | Image Acquisition Time | 1S |
| Sensor | a-Si TFT | Limited Resolution | 3.6 lp/mm |
| Scintillator Type | Perovskite / CsI / GOS | A/D Conversion | 16 bit |

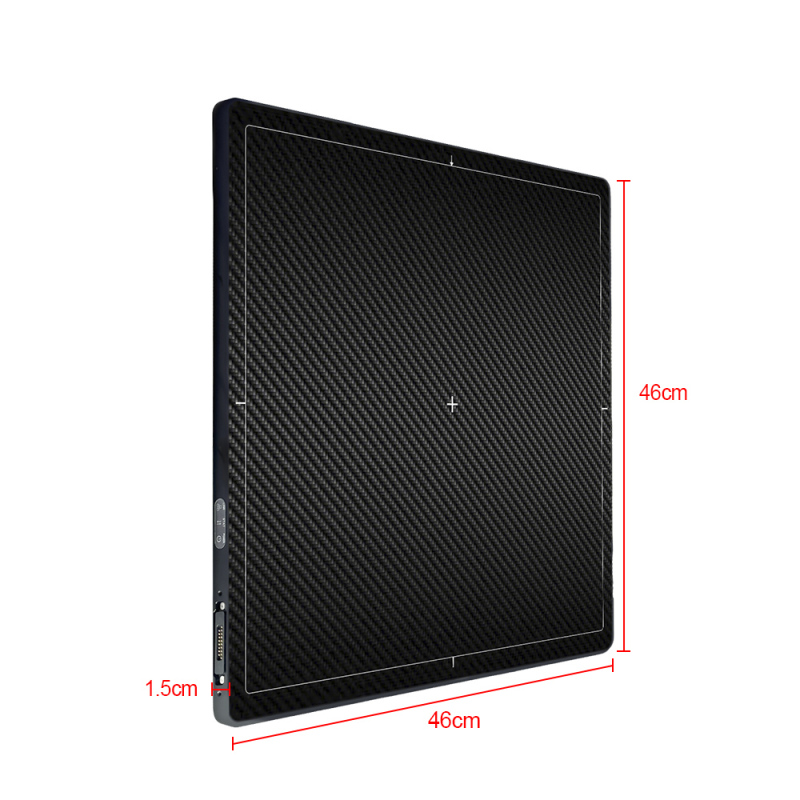

| Dimensions | 460 x 460 x 15 mm | Data Interface | GigE |
| Weight | 4.2 kg | Operating Temperature | 5~35 ℃ |
| Power Consumption | 12 W | Storage Temperature | -10~50 ℃ |
| Active Area | 430 x 430 mm | Operating Humidity | 20~90%RH (Non-condensing) |
| Pixel Size | 139 μm | Storage Humidity | 10~95%RH (Non-condensing) |
| Pixel Matrix | 3072 x 3072 | Energy Range | 40~150 KV |
17×17 wired veterinary DR flat panel detector, fast 1s imaging, GigE stable wired connection, high resolution a-Si TFT CsI panel for dog, cat and livestock digital X-ray diagnosis.
- Item No. DR-FPD-1MOQ 1 Piece
- Product weight 4.2 kg
- CTN. Spec 60*60*25 cm / 1
Choice
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Detector | DY4343 | Image Acquisition Time | 1S |
| Sensor | a-Si TFT | Limited Resolution | 3.6 lp/mm |
| Scintillator Type | Perovskite / CsI / GOS | A/D Conversion | 16 bit |
| Dimensions | 460 x 460 x 15 mm | Data Interface | GigE |
| Weight | 4.2 kg | Operating Temperature | 5~35 ℃ |
| Power Consumption | 12 W | Storage Temperature | -10~50 ℃ |
| Active Area | 430 x 430 mm | Operating Humidity | 20~90%RH (Non-condensing) |
| Pixel Size | 139 μm | Storage Humidity | 10~95%RH (Non-condensing) |
| Pixel Matrix | 3072 x 3072 | Energy Range | 40~150 KV |
Product quality assurance and after-sales service commitment
1. During the warranty period, provide users with free services; outside the warranty period, provide users with paid services in accordance with xrdent's "Uniform Charge Standard".
2. The goods provided are brand new, high-quality and qualified original products, which meet the manufacturer's quality standards.
3. The packaging of the equipment conforms to the relevant standards, and the packing list, quality certificate, product manual, warranty card, etc. are attached to the packaging box to ensure product quality and normal use.
